Reading Capacitor Labels
What Capacitors Do
Capacitors are essential components in electronic circuits, storing and releasing electrical energy when needed. Capacitors are also serving various functions from decoupling and filtering to timing and signal coupling. Here you can find more information about the capacitors role in electronics. While they come in various shapes, sizes, and capacitance values, understanding the labels on electrolytic or ceramic capacitors can be a daunting task for beginners. You might have been puzzled by the series of numbers and letters printed on its surface. Don’t fear! In this beginner’s guide, we’ll walk you through how to read capacitor labels and understand what they mean.
Understanding Capacitor Labeling
Capacitors are typically labeled with a series of alphanumeric codes that convey important information about their specifications. Let’s break down each component of a capacitor label:
- Capacitance Value (in Farads): The most crucial piece of information on a capacitor label is its capacitance value, which indicates the amount of charge it can store. This value is typically expressed in Farads (F) or one of its multiples, such as microfarads (μF) or picofarads (pF). For example, a capacitor might be labeled as “47μF” or “0.1μF”, indicating capacitance values of 47 microfarads and 0.1 microfarads, respectively.
- Voltage Rating: The voltage rating of a capacitor denotes the maximum voltage that can be applied across it without risking damage. This value is usually expressed in volts (V) and indicates the maximum voltage the capacitor can handle safely. For instance, a capacitor might have a voltage rating of “25V” or “50V”.
- Tolerance: Similar to resistors, capacitors also have a tolerance rating, which indicates the acceptable deviation from the stated capacitance value. Tolerance is usually expressed as a percentage and denotes the maximum allowable variance from the nominal value. Common tolerance values include ±5%, ±10%, and ±20%.
- Temperature Coefficient (Optional): Some capacitors may also include a temperature coefficient, which indicates how the capacitance value changes with temperature. This value is expressed in parts per million per degree Celsius (ppm/°C) or as a percentage change per degree Celsius (%/°C).
Reading Electrolytic Capacitor Labels: Examples
Let’s look at a couple of examples to illustrate how to read capacitor labels:
- Example 1:
- Label: 100μF 25V ±10%
- This capacitor has a capacitance value of 100 microfarads (μF), a voltage rating of 25 volts (V), and a tolerance of ±10%.
- Example 2:
- Label: 0.1μF 50V ±5% X7R
- This capacitor has a capacitance value of 0.1 microfarads (μF), a voltage rating of 50 volts (V), a tolerance of ±5%, and an X7R temperature coefficient.
-

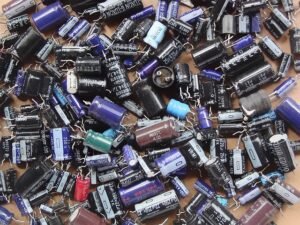

- Electrolytic Capacitor
-
- Ceramic Capacitors
Understanding Ceramic Capacitor Labels:
Ceramic capacitors typically feature alphanumeric codes printed on their surface, indicating their capacitance value, tolerance, voltage rating, and sometimes their dielectric material. Let’s break down each component of the label:
- Capacitance Value:
- The capacitance value is denoted by a three-digit code or a numeric value followed by a letter code. For example:
- 104 represents 10 x 10^4 pF = 100,000 pF = 100 nF (1 µF)
- 473K represents 47 x 10^3 pF = 47,000 pF = 47 nF
- Tolerance:
- The tolerance indicates the maximum allowable deviation from the nominal capacitance value and is usually represented by a letter code. Common tolerance codes include:
- J for ±5%
- K for ±10%
- M for ±20%
- Voltage Rating:
- The voltage rating specifies the maximum voltage that can be applied across the capacitor without risking damage. It is usually expressed in volts (V) or as a three-digit code. For example:
- 104K100V represents a 100V rated capacitor
Reading Ceramic Capacitor Labels: Examples
Let’s decipher a ceramic capacitor label together:
- Label: 473K100V
- Capacitance: 47 nF
- Tolerance: ±10%
- Voltage Rating: 100V
Reading capacitor labels may seem daunting at first, but once you understand the key components, it becomes much easier to decipher their meanings. By familiarizing yourself with capacitor labels, you’ll be better equipped to choose the right capacitors for your electronic projects and understand their performance characteristics. So, the next time you encounter a capacitor label, you’ll know exactly what it’s telling you!
