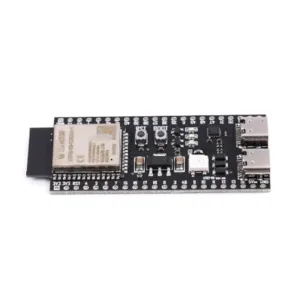

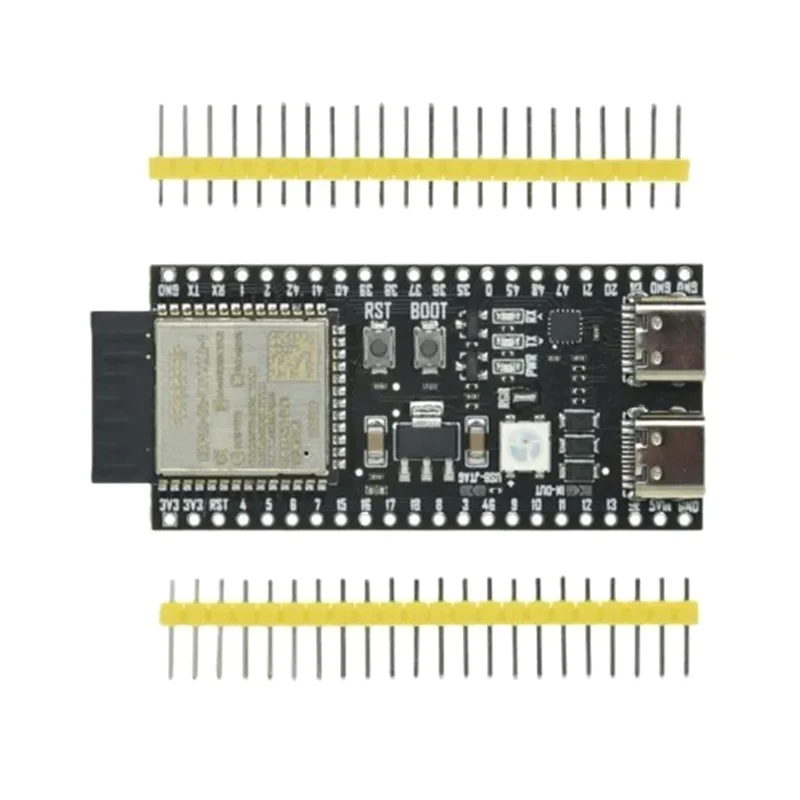

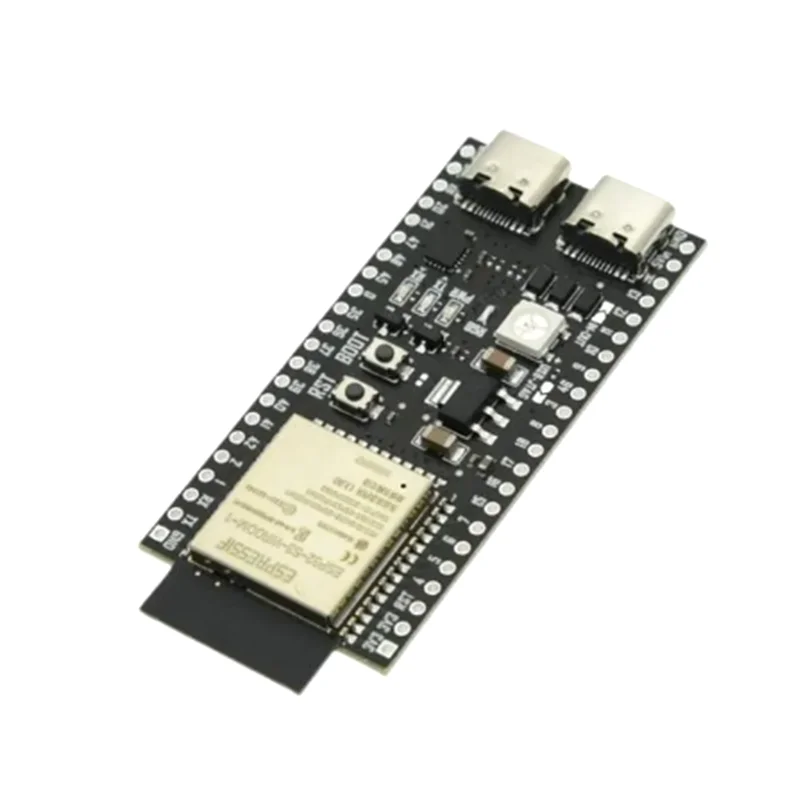

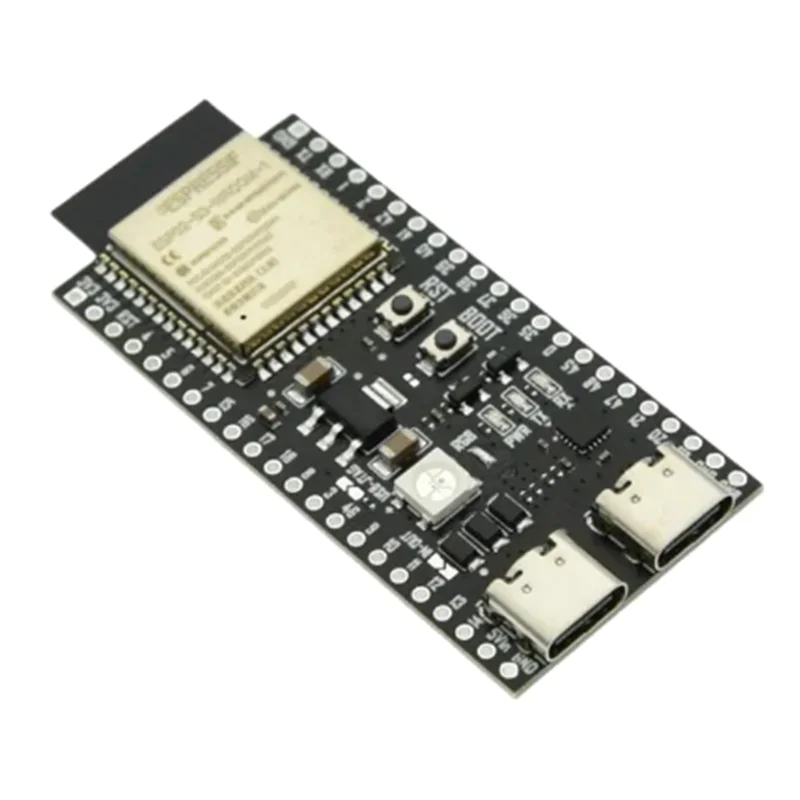

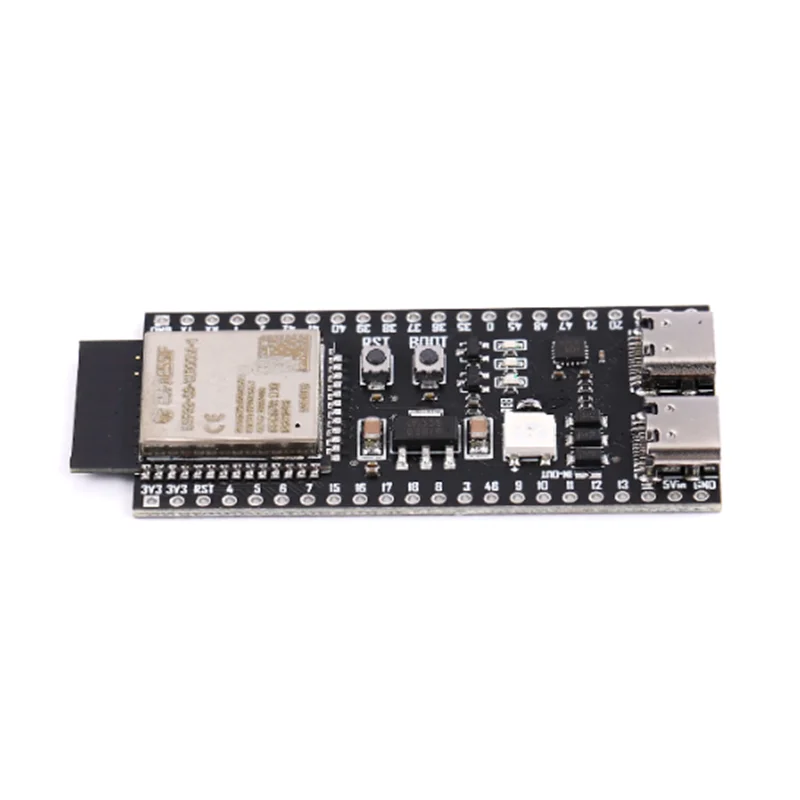

ESP32-S3-DevKitC-Wireless Module WiFi Bluetooth

Feature:
1. ESP32-S3 N16R8: With a high frequency of up to 240MHz, built-in 512KB SRAM (RCM), 45 programmable pins, and abundant communication interfaces, this development board offers powerful capabilities. This development board offers powerful capabilities. It supports AI acceleration with vector instructions for tasks like neural network computation It supports AI acceleration with vector instructions for tasks like neural network computation and signal processing.
2. Comprehensive Security Mechanisms: The ESP32-S3 core board provides robust security mechanisms and protective measures for IoT devices, safeguarding against various malicious attacks and threats. The ESP32-S3 core board provides robust security mechanisms and protective measures for IoT devices, safeguarding against various malicious attacks and threats. Rest assured that your data and devices are well-protected.
3. Mature Software Support: Gain from the extensive software support available for the ESP32-S3. Additionally, WiFi BT BLE module offers a wide range of Additionally, the WiFi BT BLE module offers a wide range of IO interfaces, allowing for seamless integration with other components and peripherals.
4. YD-ESP32C3: Ideal for Various Scenarios: The ESP32-C3 development board is a secure, stable, low-power, and cost-effective IOT chip. Equipped with an RSC-V 32-bit single chip, the ESP32-C3 development board is a secure, stable, low-power, and cost-effective IOT chip. Equipped with an RSC-V 32-bit single-core processor, it supports 2.4GHz Wi-Fi and Bluetooth-Compatible 5.0. Its dual support for Wi-Fi and BLE reduces the complexity Its dual support for Wi-Fi and BLE reduces the complexity of device networking, making it suitable for a wide range of IoT applications.
5. Powerful Performance: The ESP32-C3 development board core features an RSC-V 32-bit single-core processor with a clock frequency of up to 160MHz. maintains excellent RF performance even at higher temperatures, ensuring reliable and efficient operation.

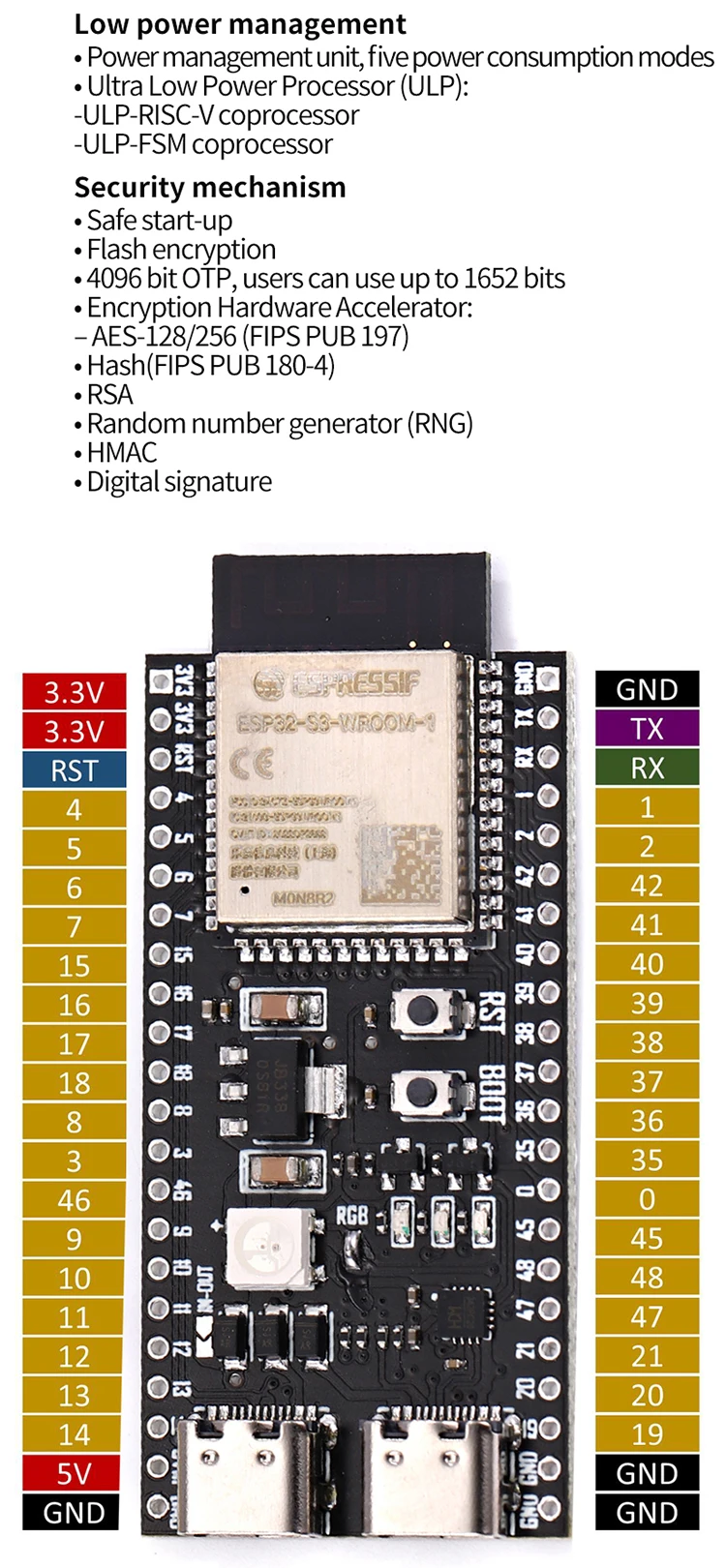

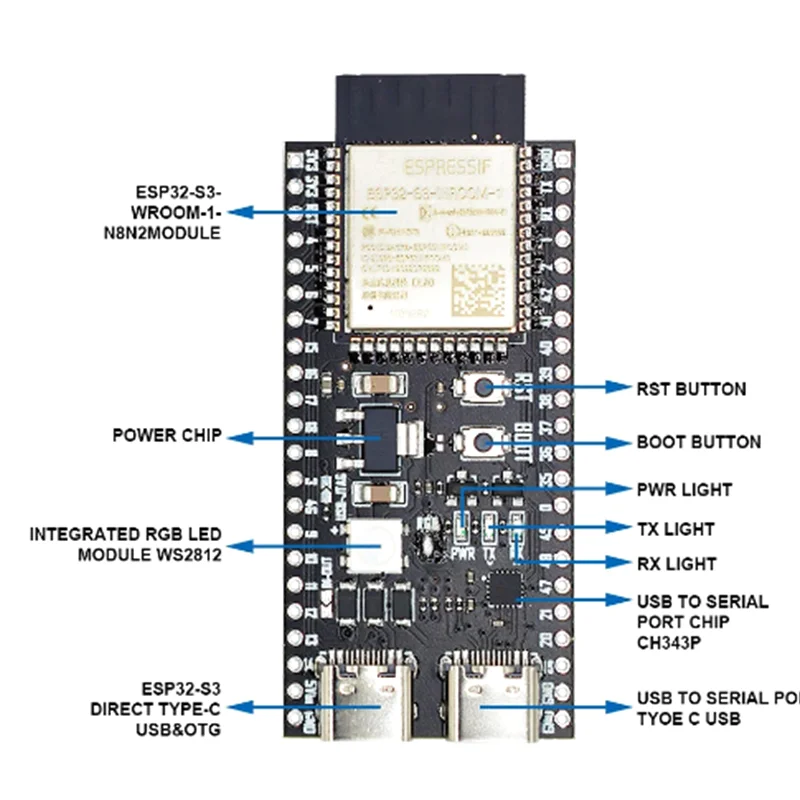

About ESP32-S3 Hardware Resources
1. ESP32-S3 is a low-power MCU system-on-chip (SoC) with integrated 2.4 GHz Wi-Fi and low-power Bluetooth-Compatible LE dual-mode wireless communication.
2. ESP32-S3 has a complete Wi-Fi subsystem and low-power Bluetooth-Compatible subsystem, with industry-leading low-power performance and RF performance.
3. Supporting a variety of low-power operating states, it can meet the power requirements of various application scenarios.
4. ESP32-S3 chip provides rich peripheral interfaces and has a variety of unique hardware security mechanisms.
5. The perfect security mechanism enables the chip to meet the strict security requirements.
6. Up to 45 GPIOs
7. 2*12-bit ADC (up to 20 channels)
8. Communication interfaces :
2 I2C interfaces
2 I2S interfaces
4 SPI interface
3 UART interface
1 USB OTG interface
Operating voltage: 3~3.6V
Size: 57x28x5mm/2.24×1.1×0.2inch

Performance

Core
Xtensa® dual-core 32-bit LX7 CPU, frequency up to 240MHz

Memories
384 KB of ROM
512 KB of SRAM
16 KB of RTCSRAM
8 MB of PSRAM
Working voltage: 3V to 3.6V
Up to 45 GPlOs
2*12-bit ADC(up to 20 channels)

Communication Interfaces
2 12C interfaces
2 2s interface
4 SPl interfaces.
3 UART interfaces
1 USB OTG interface

Security
4096 bit OTP
AES, SHA,RSA, ECC, RNG
Secure Boot, Flash Encryption, Digital signature, HMAC module
Extended temperature range: -40°F to 149°F
