DIY FM Radio Kit

• DIY Electronic Circuits: The RDA5807S Radio Receiver Module Kits offer a unique DIY experience, allowing you to create your own electronic circuits and enhance your learning process.

• Dual Power Supply: These module kits come with a dual power supply feature, ensuring stable and efficient operation of your device, making it a reliable choice for electronics enthusiasts.

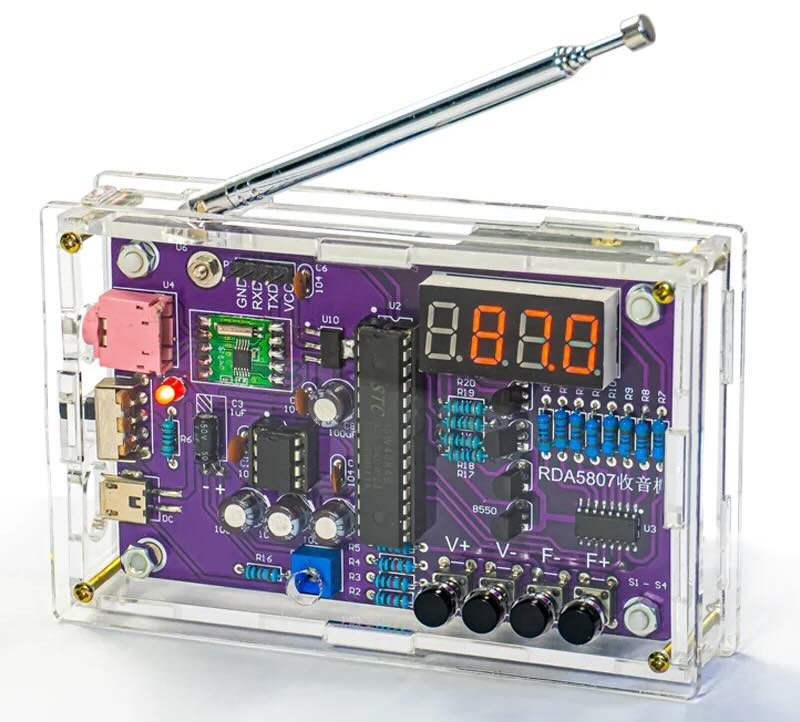

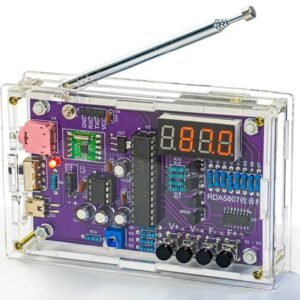

• Digital Tube Display: Equipped with a seven-segment display, these module kits provide clear and comprehensive information, adding a touch of modernity to your project.

• Wide Frequency Range: With a frequency range of 87-108MHz, these receiver module kits guarantee a wide range of reception, making them ideal for various electronic projects.

• For Soldering Iron Exercises: The RDA5807S Radio Receiver Module Kits are compatible with electric soldering irons, providing a convenient and easy-to-use solution for your electronics projects.

Product Features:

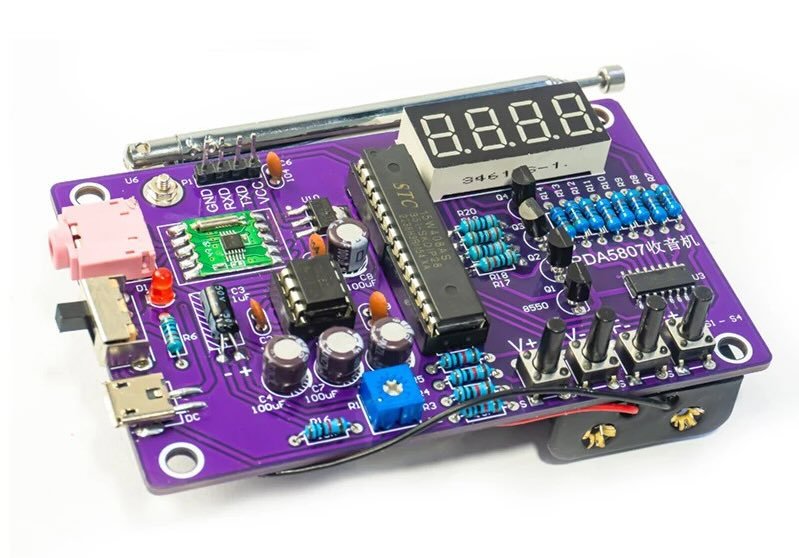

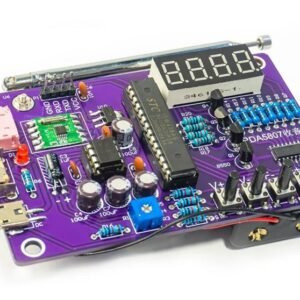

Adopts RDA5807S radio module, offering global FM receiving band compatibility, noise elimination, soft mute, bass enhancement, high sensitivity, low noise, and strong anti-interference abilities.

The power amplifier section utilizes the TDA2822 power amplifier integrated circuit, featuring a simple circuit design and good sound quality, along with a wide voltage range.

Frequency Range: 87-108MHz

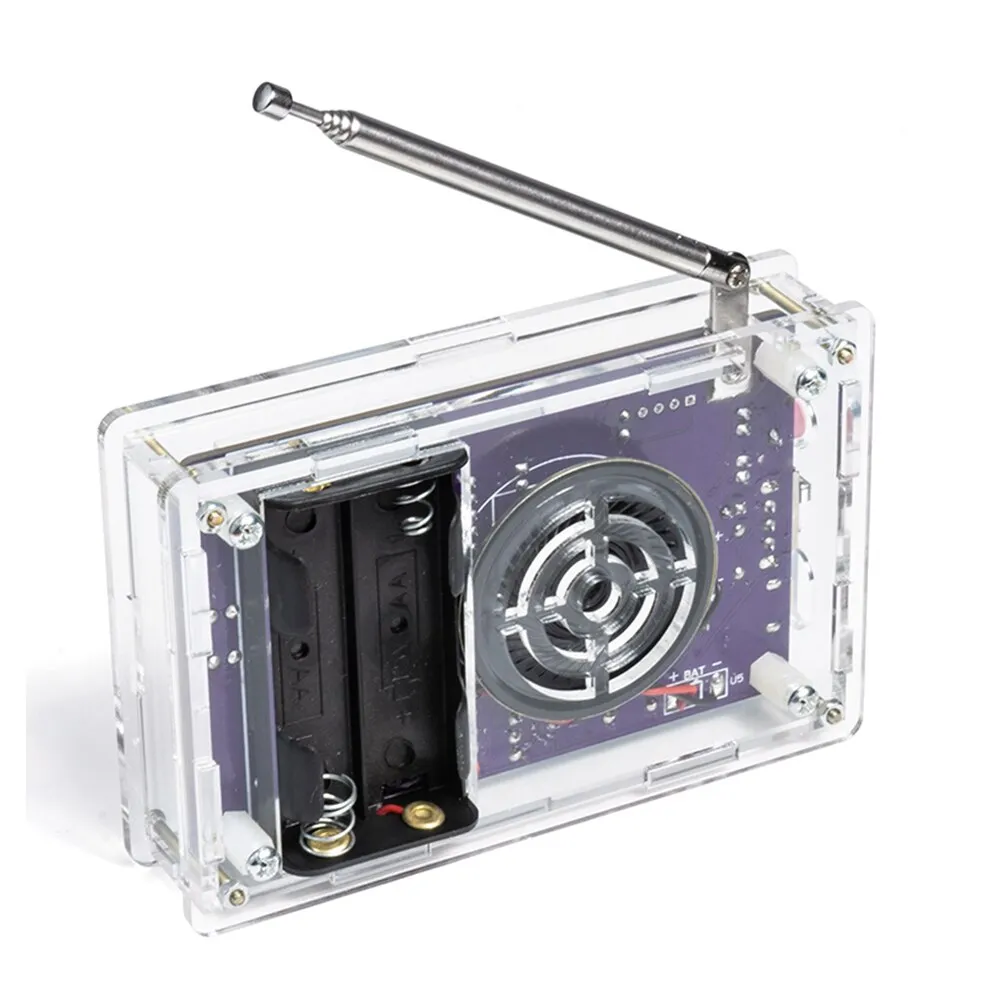

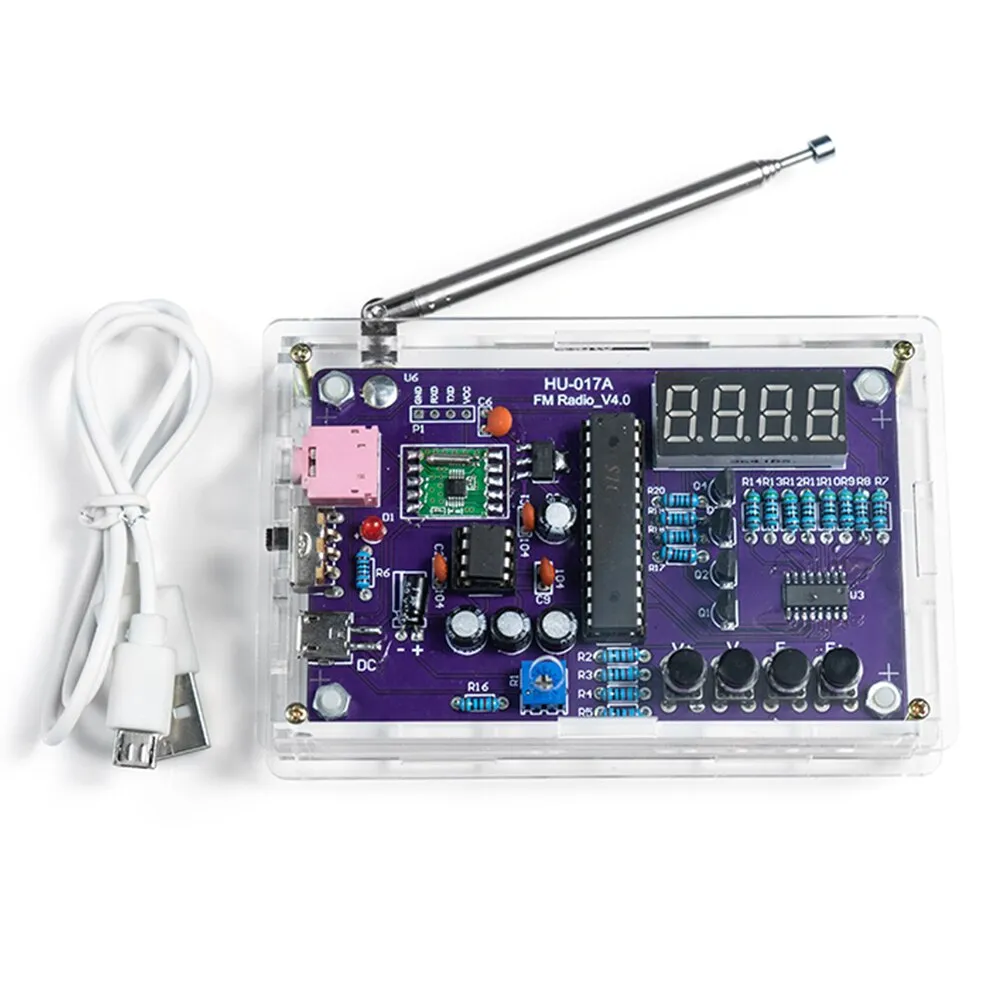

Dual Power Supply: Supports either 5V mobile phone charger power supply or 2 x dry batteries (batteries not included). Choose one of two power supply modes.

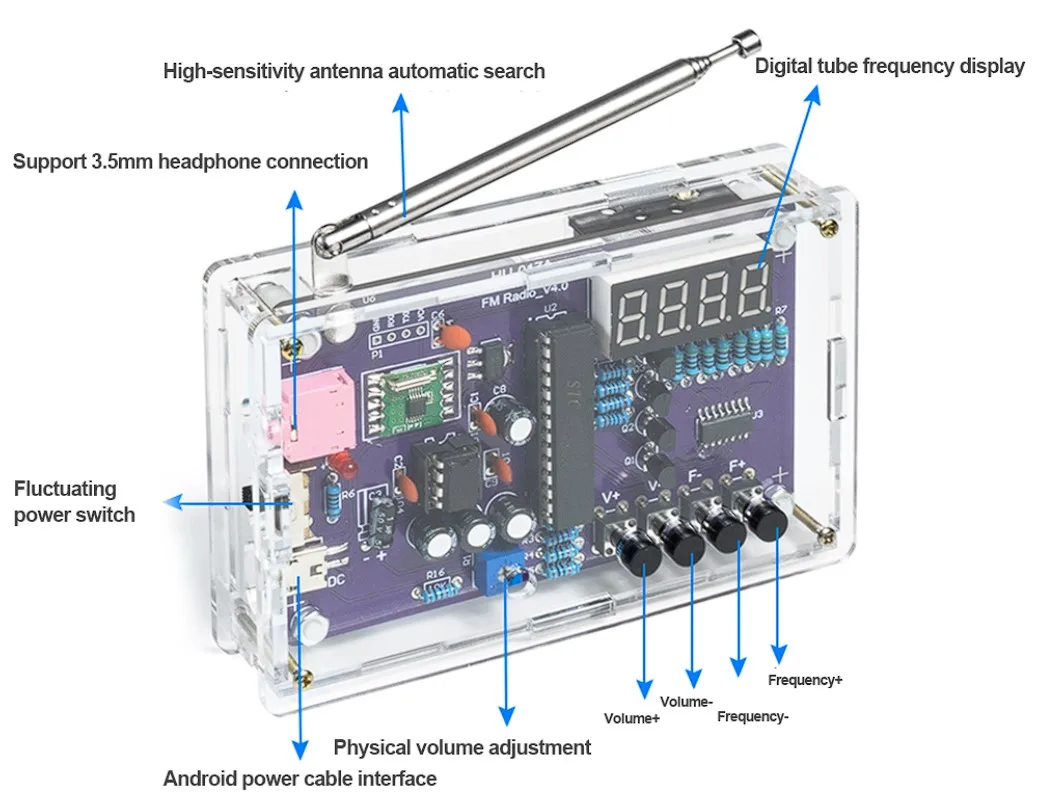

Antenna and Search: Features a high-sensitive antenna for automatic station search.

Output: 1/2W

PCB Board Size: 3.74” x 2.32”

Case Size: 4.33” x 2.79” x 0.94”

Weight with Case: 4.58 Ounces

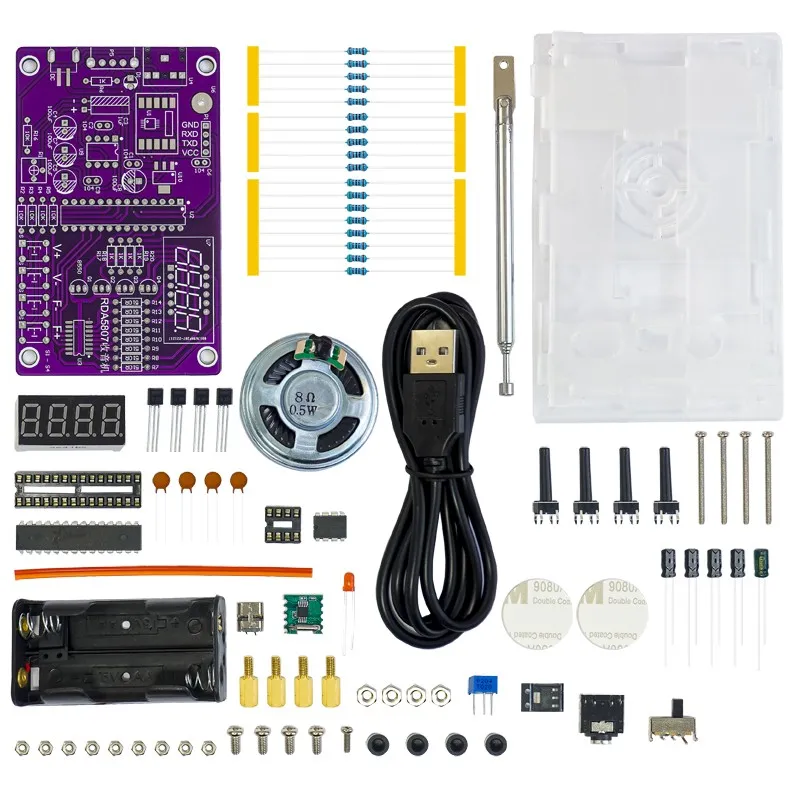

List of Products: 1X Radio Assembly Kit with Circuit Diagram
